title: "Dashboard Guide"
description: "Read the monthly security overview for a protected app — attack volume, threat types, geography, and affected OS versions."
---
> For the complete documentation index, see [llms.txt](https://docs.doverunner.com/llms.txt).

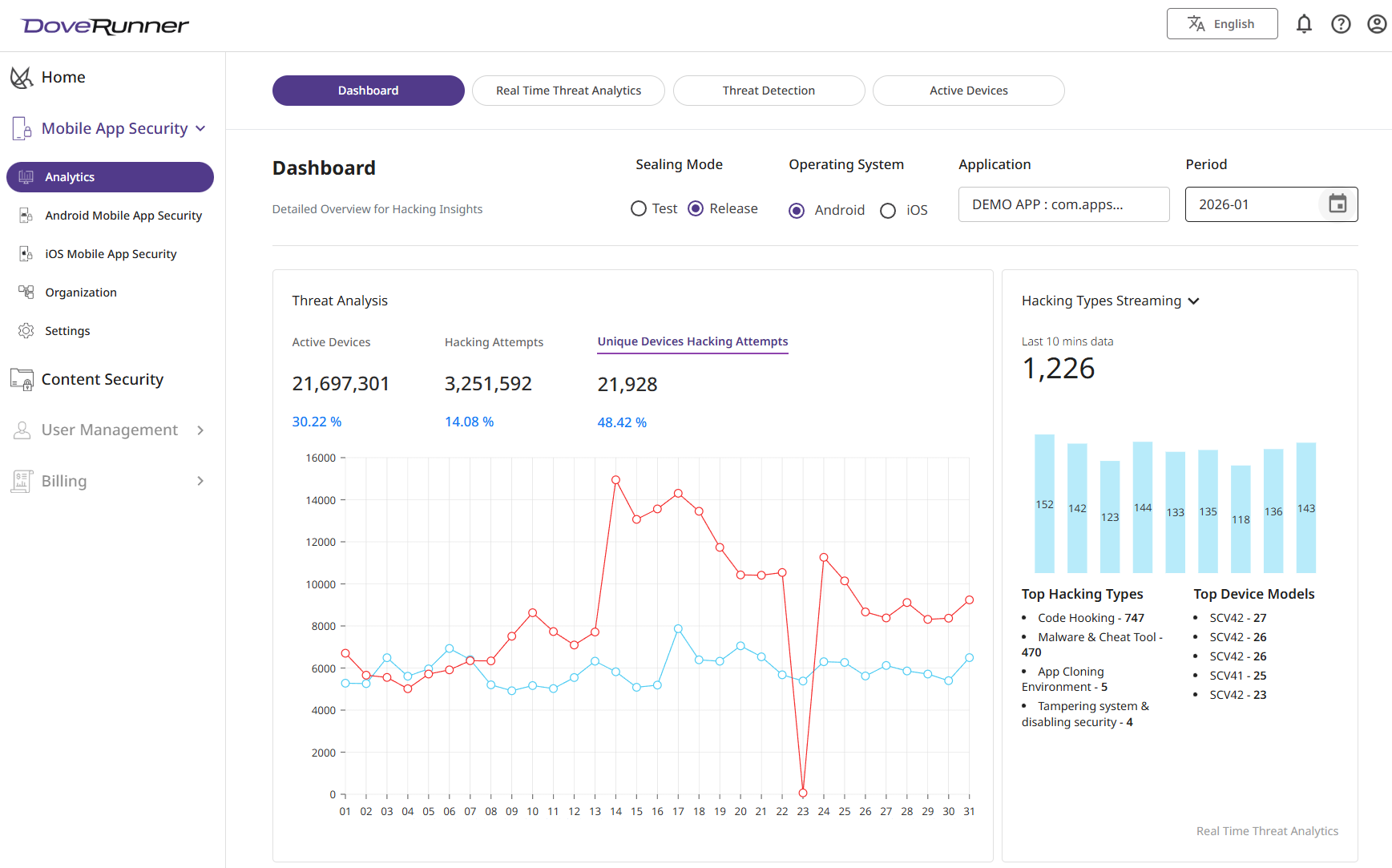

The **Dashboard** is the monthly overview of a single protected app: how much traffic it saw, how much of that was hostile, and where the hostile part came from. The console describes it as *Detailed Overview for Hacking Insights*.

Open **Mobile App Security → Analytics**. The Analytics menu contains these pages:

| Page | Purpose |
| :--- | :------ |
| **Dashboard** | Monthly overview for one app |
| [ROI](https://docs.doverunner.com/mobile-app-security/console/dashboard/roi/) | Protection activity translated into return on investment, per app and platform. Shown only to accounts eligible for Access Signals. |
| [Real Time Threat Analytics](https://docs.doverunner.com/mobile-app-security/console/dashboard/real-time-threat-analysis/) | The last 60 minutes, refreshed live |
| [Threat Detection](https://docs.doverunner.com/mobile-app-security/console/dashboard/hacking-detection/) | Threat-type and device-level breakdown |
| [Active Devices](https://docs.doverunner.com/mobile-app-security/console/dashboard/active-devices/) | Daily and monthly unique device counts |

**Note:**
**ROI** appears only when it is enabled for your account. If you do not see it, contact the [Help Center](https://support.doverunner.com) to enable it.


## Filters

Most Analytics pages share these. Data only appears once an app is selected.

| Filter | Description |
| :----- | :---------- |
| **Sealing Mode** | `Test` or `Release`. Pick the mode the build was sealed in — data is collected separately for each. |
| **Operating System** | `Android` or `iOS`. Determines which apps appear in the Application list. |
| **Application** | The app to report on. Type to search by name or package name. |
| **Period** | The month to report on, as `YYYY-MM`. |

## Widgets

### Threat Analysis

Three figures for the selected month, each with the change against the previous period:

| Metric | Meaning |
| :----- | :------ |
| **Active Devices** | Devices that ran the protected app. |
| **Hacking Attempts** | Total detections recorded. |
| **Unique Devices Hacking Attempts** | Distinct devices that produced at least one detection. |

A daily chart below plots the same series across the days of the month.

**Note:**
Hacking Attempts counts events, not devices. A single compromised device running an automated tool can produce a large share of the total, which is why the unique-device figure matters when judging how widespread an attack is.

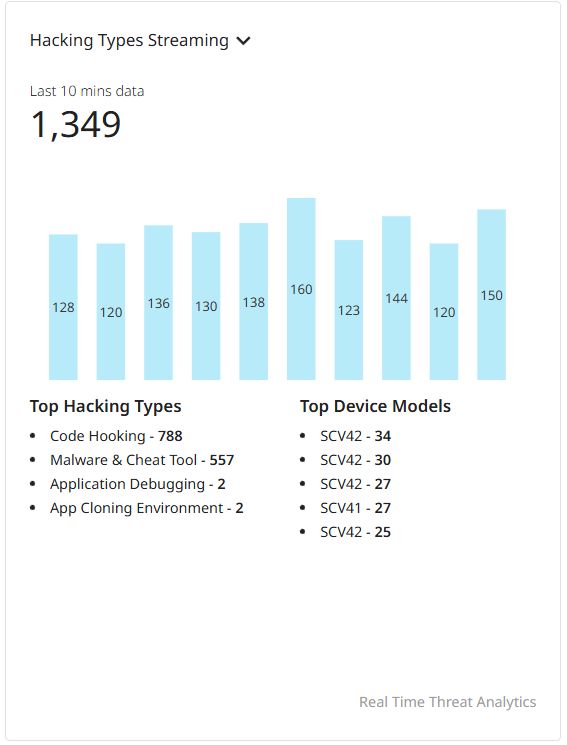

### Hacking Types Streaming

A live snapshot labelled **Last 10 mins data**. Click the widget title to switch between two views:

- **Hacking Types Streaming** — the total hacking attempts in the last 10 minutes.
- **Protected Unique Devices Data** — the total unique devices protected in the last 10 minutes.

Below the total, a bar chart plots the selected series over the window, followed by two lists showing the top five entries:

- **Top Hacking Types** — the threat categories seen most in that window.
- **Top Device Models** — the device models producing them.

The **Real Time Threat Analytics** link at the bottom of the widget opens the [Real Time Threat Analytics](https://docs.doverunner.com/mobile-app-security/console/dashboard/real-time-threat-analysis/) page.

### 12-Month Trend of Hacking Blocks

A bar chart showing blocked attempts per month over the past year. Use it to tell a genuine change from normal month-to-month variation.

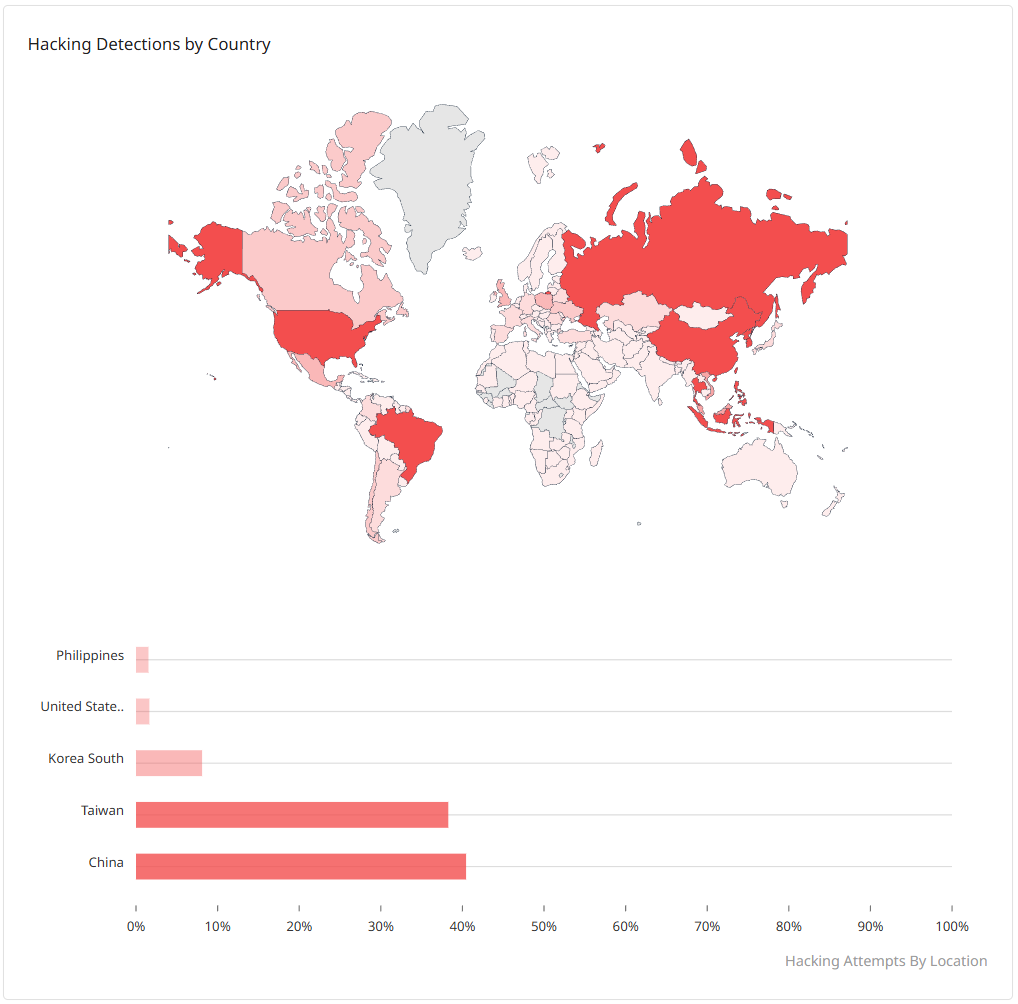

### Hacking Detections by Country

A world map of the month's detections, with a 100% bar chart below it showing the share of the top five countries. The **Hacking Attempts By Location** link opens the [Threat Detection](https://docs.doverunner.com/mobile-app-security/console/dashboard/hacking-detection/) page.

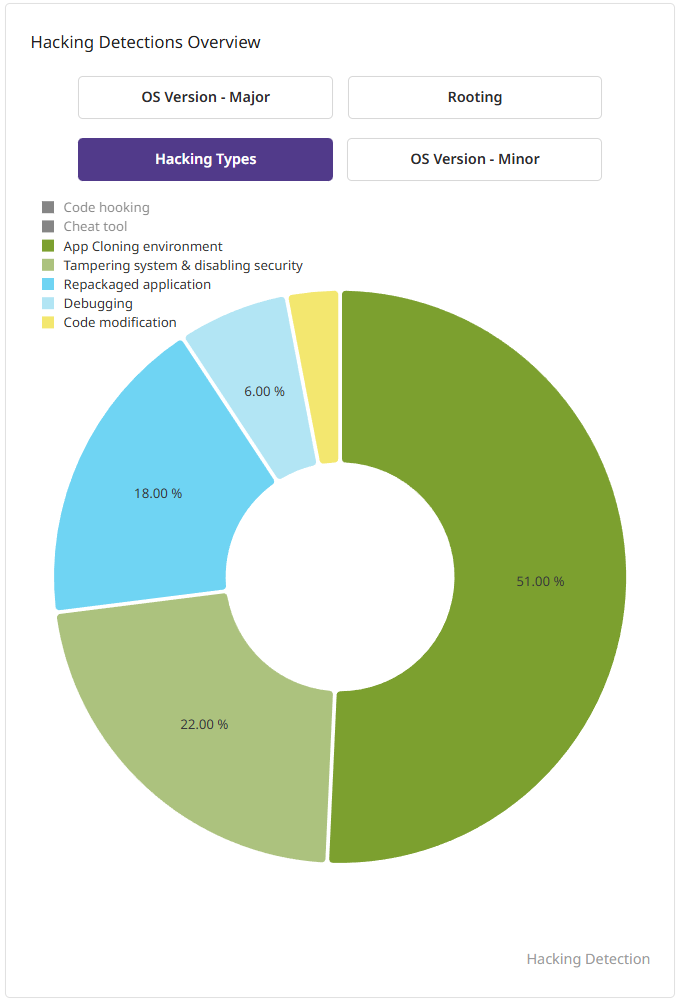

### Hacking Detections Overview

A pie chart of the month's detections viewed through several lenses, selectable as buttons:

- **OS Version - Major**
- **OS Version - Minor**
- **Hacking Types**
- **Rooting** (Android only)
- **Jailbreak** and **Hacking Patterns** (iOS only)

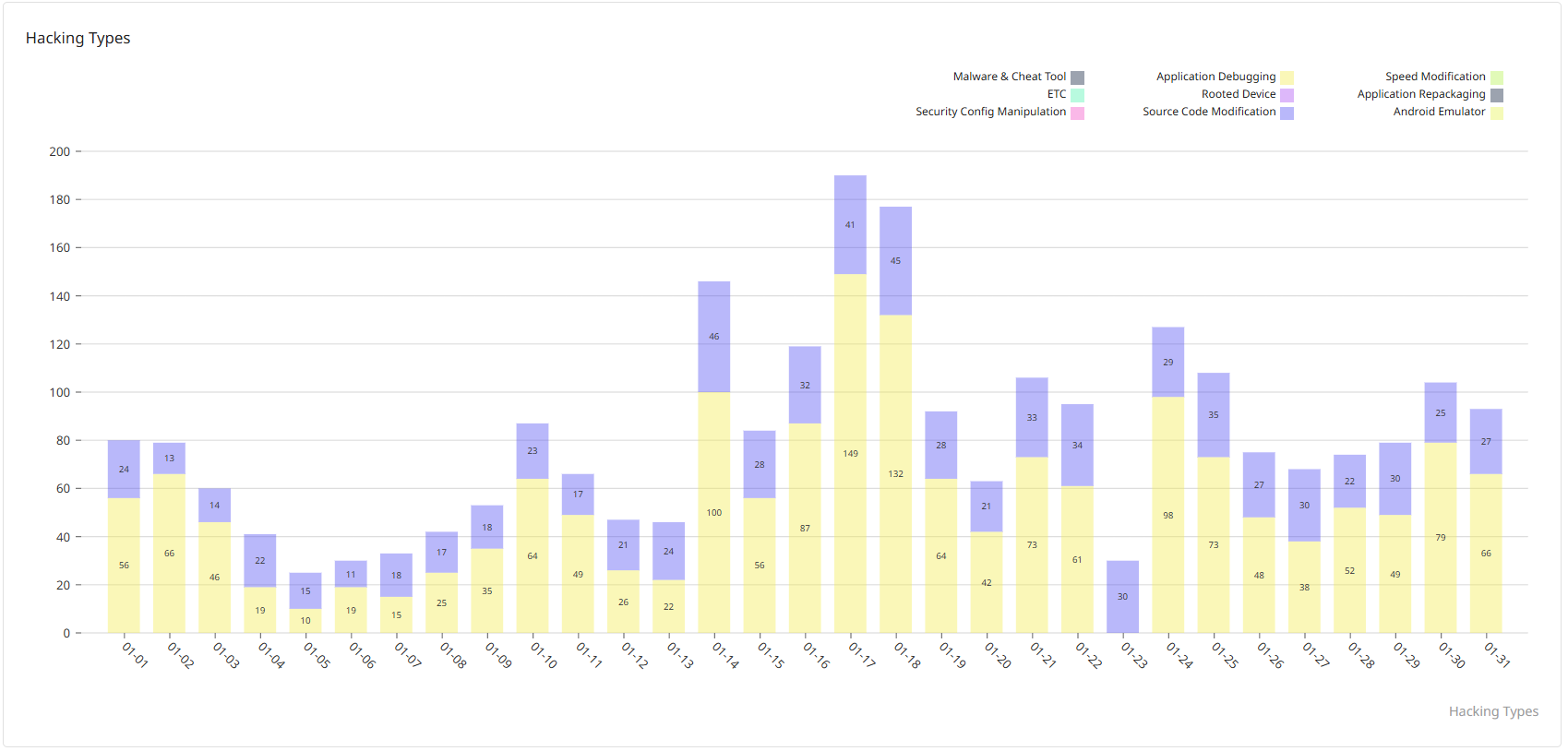

### Hacking Types

A daily stacked chart for the month, with one series per threat category. Use the legend to isolate a category. The categories depend on the selected operating system:

| Operating System | Categories |
| :--------------- | :--------- |
| **Android** | Android Emulator, Source Code Modification, Security Config Manipulation, Application Repackaging, Rooted Device, Other, Speed Modification, Application Debugging, Malware & Cheat Tool |
| **iOS** | Speed Modification, Application Debugging, Malware & Cheat Tool, Security Config Manipulation, Dynamic memory cracking, Jailbreak, Application Repackaging |

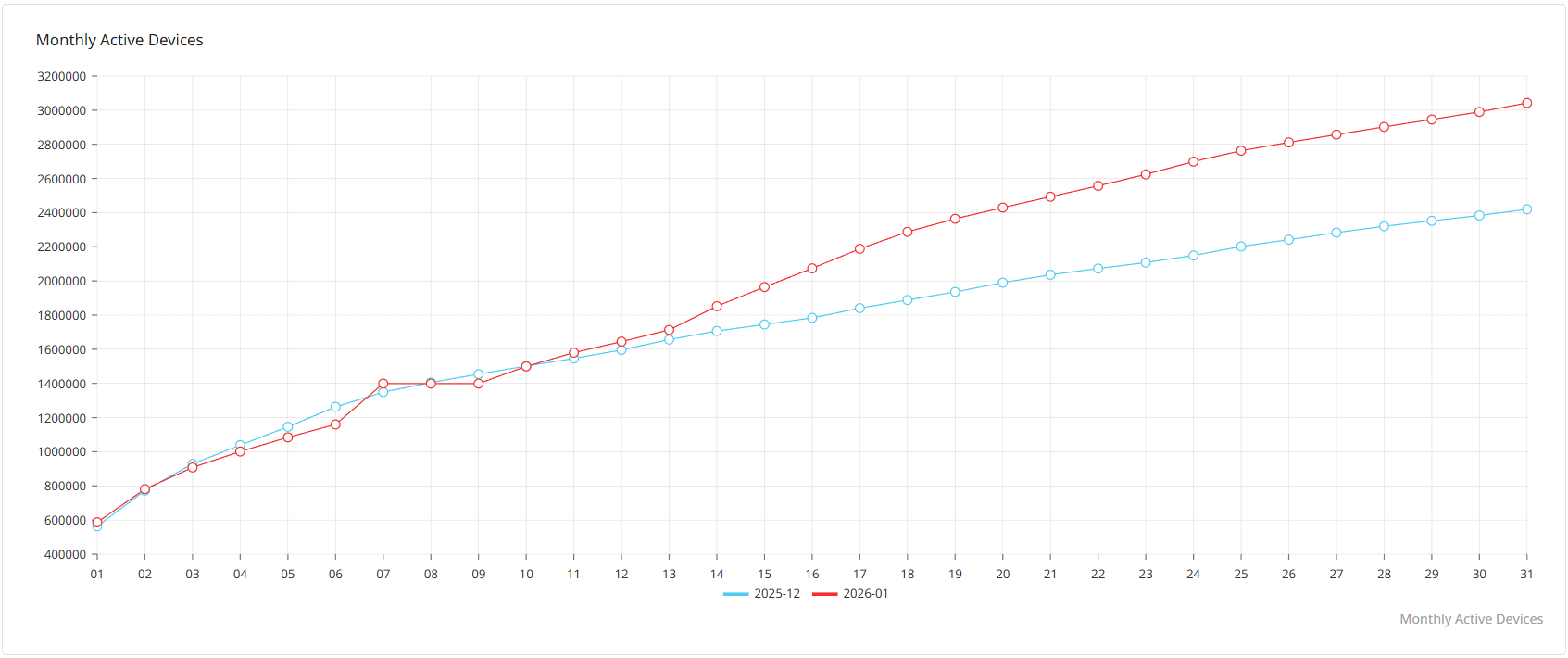

### Monthly Active Devices

The cumulative number of unique devices that ran the app during the selected month, plotted per day, with the previous month overlaid for comparison.

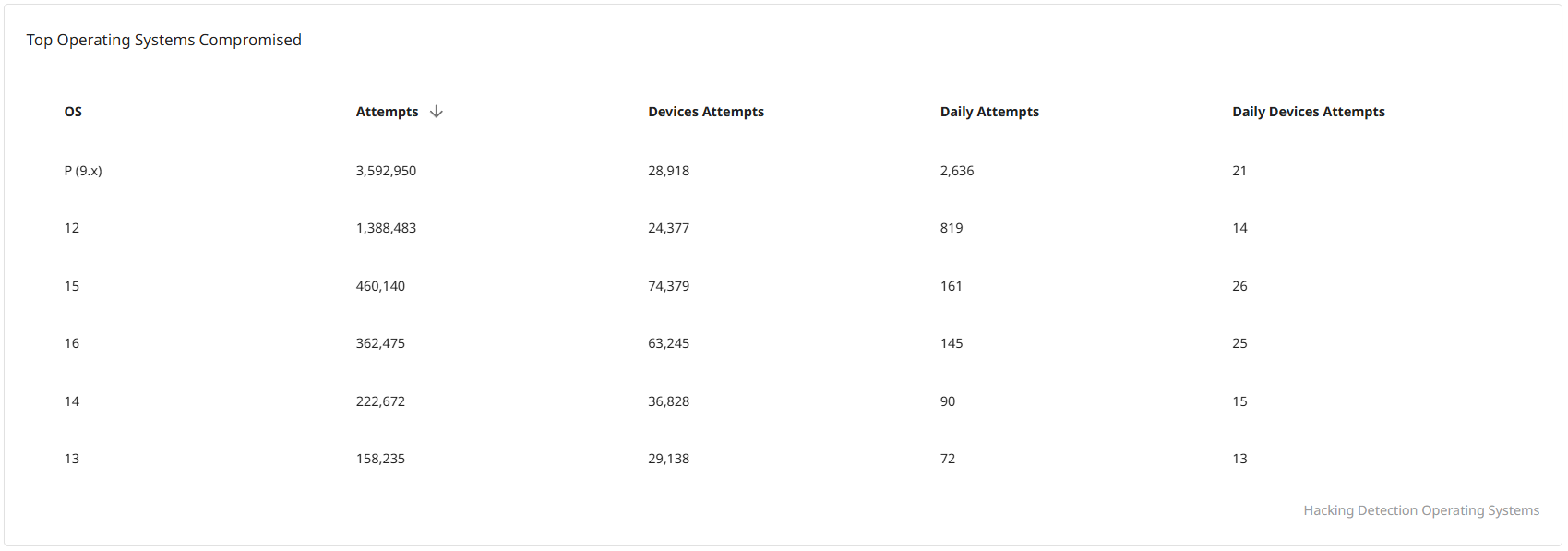

### Top Operating Systems Compromised

A table ranking the OS versions producing the most detections:

| Column | Meaning |
| :----- | :------ |
| **OS** | Operating system version. |
| **Attempts** | Total detections from that version in the period. |
| **Devices Attempts** | Distinct devices on that version that produced detections. |
| **Daily Attempts** | Daily average of Attempts. |
| **Daily Devices Attempts** | Daily average of Devices Attempts. |
